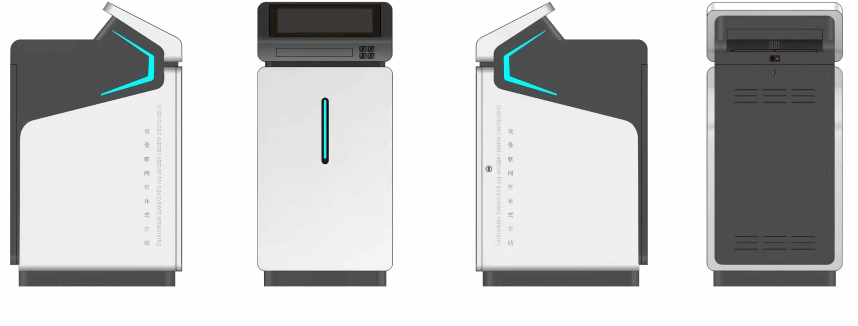

Equipment Name: Multi-layer Regional Networking

Device Manufacturer: Self-developed

Equipment Introduction: This device simulates the multi-level networking of "Group - Factory - Workshop - Production Line - Equipment". The applied technologies include Ethernet, Wifi, and NB-IoT (or 5G). It is designed to meet the needs of presenting complex structure networks in industrial production scenarios within training centers. The focus is on numerical control equipment, industrial control equipment, electronic equipment, and computing equipment as the main objects. It involves fieldbus networks, the Internet of Things, dedicated Ethernet, and public Ethernet as the main components. The research and design of the in-plant network and campus network with a multi-level architecture across the training site span are conducted.

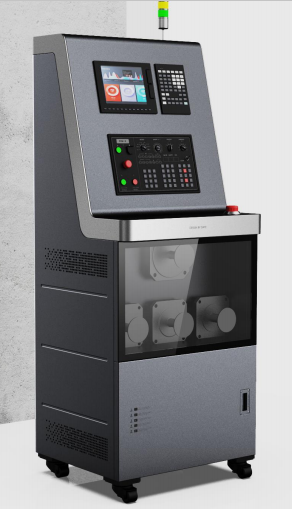

Equipment Name: CNC System Simulator

Manufacturer: Self-developed

Equipment Introduction: This is a multi-CNC system integrated drive product that enables the connection of representative CNC equipment in the training center to the cloud platform. It develops multi-CNC system integrated drives, supporting mainstream brands such as FANUC, Siemens, Heidenhain, Mitsubishi, HuazhongCNC, KND CNC, QCMT&T, etc. It supports the collection of information, including CNC system serial number, alarm information, system coordinates, workpiece coordinates, program status, tool information, etc.

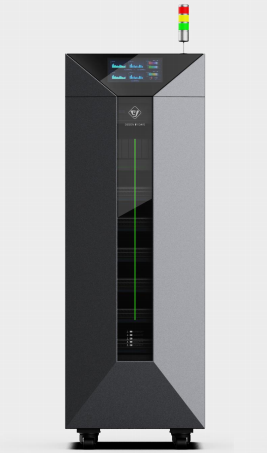

Equipment Name: Networked Distributed Master Station

Manufacturer: Self-developed

Equipment Introduction: This device features physical interfaces for wired communication protocols such as RJ45, RS232, RS485, and ZigBee; physical ports for wireless communication signals including LoRa, Bluetooth, WiFi, NB-IoT, 2/3/4/5G; and physical ports supporting industrial bus communication protocols like ProfiNet, EtherCAT, Ethernet/IP, Sercos III, Powerlink, Modbus/TCP, and CANOpen. It is capable of data collection relay and file distribution.
